Fully in-house developed On-Board Chargers (OBC), Power Distribution Unit (PDU) products are available in both standalone and integrated configurations. The products support V2L, V2V, and V2G discharge functions as well as PTC heating. The full product portfolio is compatible with 400V / 800V / 900V platforms across multiple power levels, with flexible functional integration based on OEM requirements, ble integration of OBC, DC/DC and PDU modules
Full SiC Coverage
SiC devices applied across the entire product line, improving overall charging efficiency by 0.5%
All-Digital Technology
High-frequency soft-switching digital control enables rapid iterative development
Sensorless OTA
Supports sensorless OTA, enabling charging strategies customized to vehicle requirements
Domestic First
22 kW ODP is China’s first mass-produced product, deployed in multiple European models
Flexible Expansion
Voltage platforms cover 400V and 800V; power platforms include 7.2 kW / 22 kW OBC and 2.5 kW / 3 kW DC/DC
Modular Design
Customizable integration of OBC, DC/DC, and PDU products to fit diverse vehicle packaging layouts

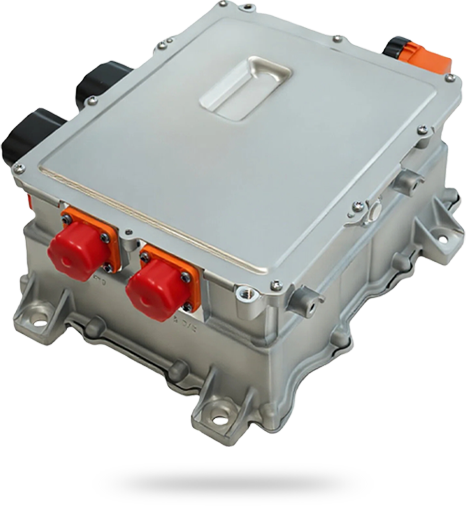

| OBC Input Voltage Range | 85–265Vac |
| OBC Maximum Input Current | 32A |
| OBC Output Voltage Range | 420–860Vdc |
| Bidirectional Support | V2L & V2V |
| OBC Charging Efficiency | Max 95.2%, Avg 94.7% |
| DC/DC Input Voltage Range | 380-860Vdc |
| DC/DC Output Voltage Range | 9-16Vdc |
| Power Rating | 3kW |
| DC/DC Efficiency | Max 95.32%, Avg 94.3% |
| Dimensions | 255mm* 213mm* 124mm |
| Weight | 8.1kg |
| Safety Level | OBC: ASIL A; DC/DC: ASIL C |

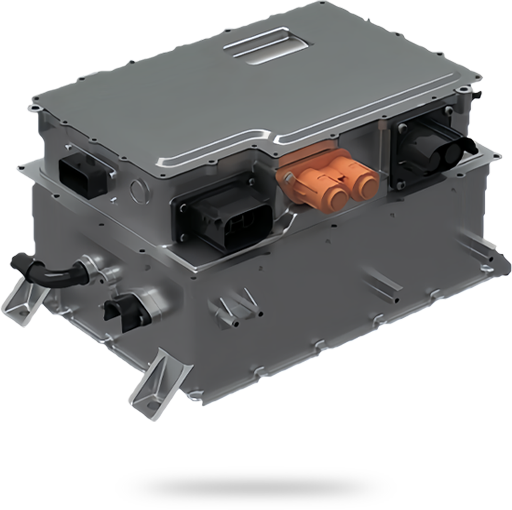

| OBC Input Voltage Range | 85–265Vac |
| OBC Maximum Input Current | 32A |
| OBC Output Voltage Range | 390–925Vdc |
| Bidirectional Support | V2L & V2V |
| OBC Charging Efficiency | Max 95.3%, Avg 94.5% |
| DC/DC Input Voltage Range | 390–935Vdc |
| DC/DC Output Voltage Range | 9–16Vdc |
| Power Rating | 3.6kW |
| DC/DC Efficiency | Max 96.81%, 94.77%@800V |
| Dimensions | 275mm* 205mm* 70mm |
| Weight | 7kg |
| Safety Level | OBC: ASIL A; DC/DC: ASIL C |

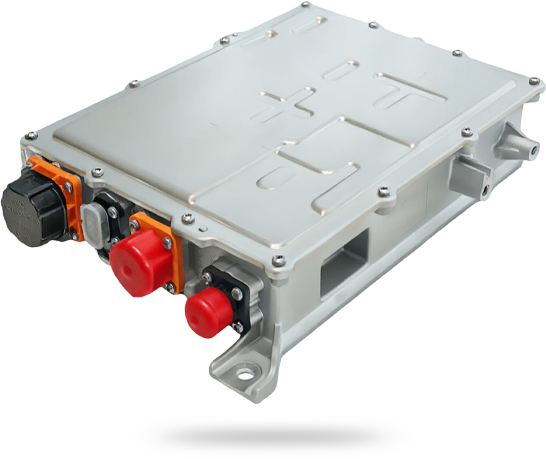

| OBC Input Voltage Range | 1P:85–265Vac; 3P:300–460Vac |
| OBC Maximum Input Current | 31.5A |
| OBC Output Voltage Range | 420–860Vdc |
| Bidirectional Support | V2L & V2V |
| OBC Charging Efficiency | Max 96.3%, Avg 96% |
| DC/DC Input Voltage Range | 380–860Vdc |
| DC/DC Output Voltage Range | 9–16Vdc |
| Power Rating | 3kW |
| DC/DC Efficiency | Max 95%, Avg 94% |
| Dimensions | 305mm* 218mm* 190mm |
| Weight | 14kg |
| Safety Level | OBC: ASIL A; DC/DC: ASIL C |

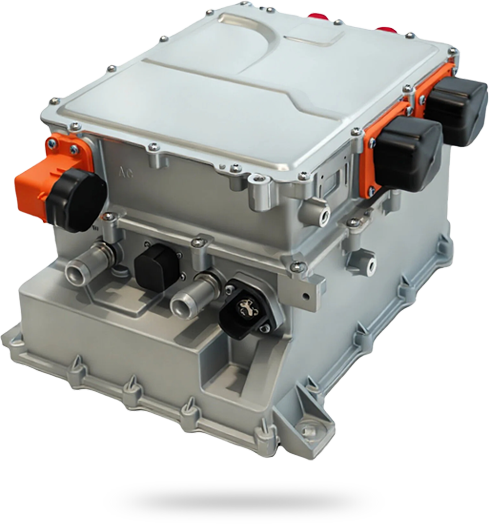

| OBC Input Voltage Range | 85–265Vac |
| OBC Maximum Input Current | 32A |
| OBC Output Voltage Range | 250–500Vdc |
| Bidirectional Support | V2L & V2V |
| OBC Charging Efficiency | Max 96.3%, Avg 96% |
| DC/DC Input Voltage Range | 380–860Vdc |
| DC/DC Output Voltage Range | 9–16Vdc |
| Power Rating | 3kW |
| DC/DC Efficiency | Max 95.6%, Avg 95.1% |
| Dimensions | 330mm* 240mm* 210mm |
| Weight | 18.1kg |
| Safety Level | OBC: ASIL A; DC/DC: ASIL C |
