Technology & Solutions - Products - E-Drive Units

Products

E-Drive Units

Complete EDUs and components can be adapted to fit in both EV and HEV applications. Our products are compatible with A-E vehicle classes, covering sedans, SUVs and performance models.
The products are based on our long experience of designing and producing electrified transmissions and using are components from market leading suppliers, covering 3-in-1 to multi-in-1 electric drive units and components. We use a modular approach for our products and support 400V, 800V, and 1000V applications.

Products > E-Drive Units > P600 Series

P600 Series

Platform development, meet the requirements of different voltage platforms

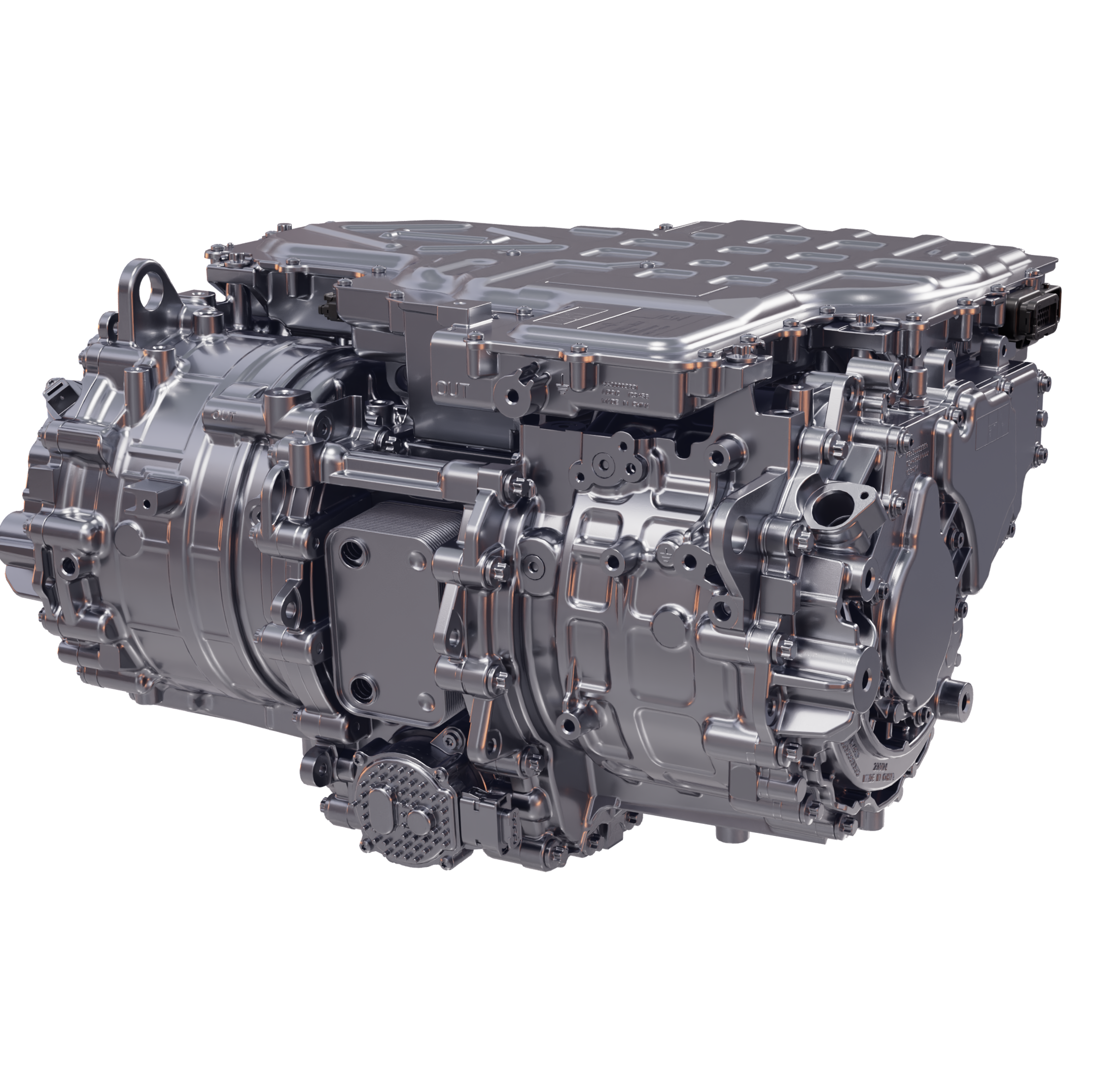

EDU P600
Compact high-performance EDU with high efficiency and lightweight

Peak power:360kW

Peak torque:5200Nm

Max. speed:21000rpm

CLTC efficiency:≥93.7%

Weight:≤77kg

X*Y*Z:497mm*406mm*313mm

Compact inverter brick design→improving efficiency

CLTC efficiency: ≥ 93.7%

Compact Layout: Coaxial Planetary Gearsets

Ultra light weight: 77kg for 5200Nm EDU

Products > E-Drive Units > TP501 Series

TP501 Series

Platform development, meet the requirements of different voltage platforms

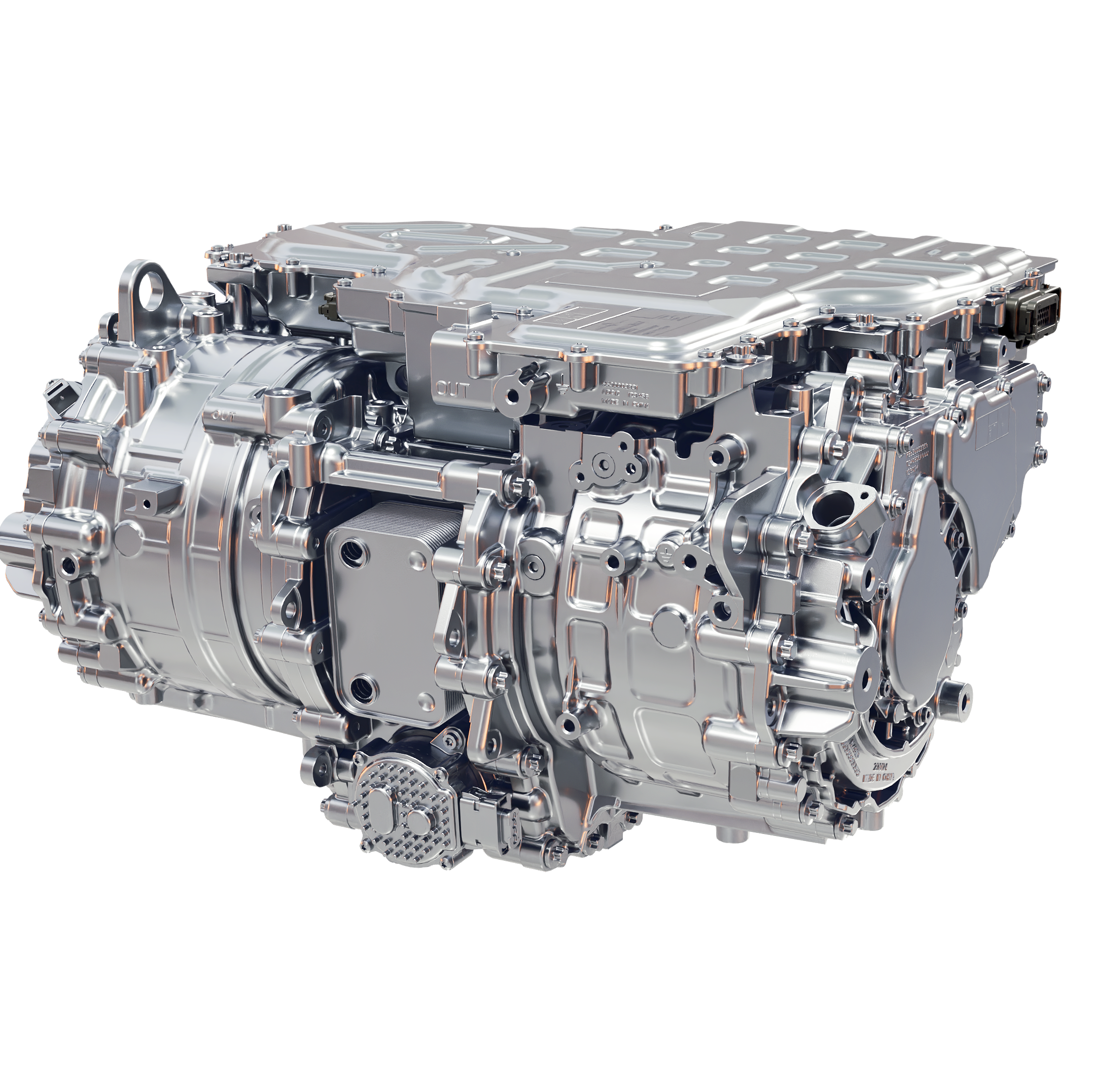

EDU TP501
Worldwide 1st 900V high-performance coaxial dual electric drive system with magnesium housing

Peak power:360*2kW

Peak torque:4730*2Nm

Max. speed:21000rpm

CLTC efficiency:≥92.4%

Weight:≤130kg

X*Y*Z:427mm*656mm*325mm

Top power/torque density of dual motor system with magnesium housing in mass production: 5.69 kW/kg 72.7 Nm/kg

Deep oil-cooling technology for stator and rotor:Stator with slot-near cooling to increase thermal load capacity by 50%;Rotor with magnet-near cooling to reduce temperature by 20%;Enable full acceleration over 80 times without derating

Top CLTC efficiency in mass production ≥92.4%@750V

Products > E-Drive Units > L200 Series

L200 Series

High-reliability, ultra-highly integrated 11 in 1 intelligent EDU, obtained the CARI 'High Reliability Electric Drive' certificate

EDU L200
High-reliability, ultra-highly integrated 11 in 1 intelligent EDU, obtained the CARI 'High Reliability Electric Drive' certificate

Peak power:58kW

Peak torque:1480Nm

Max. speed:12000rpm

CLTC efficiency:≥89%

Weight:≤55kg

X*Y*Z:472mm*452mm*372mm

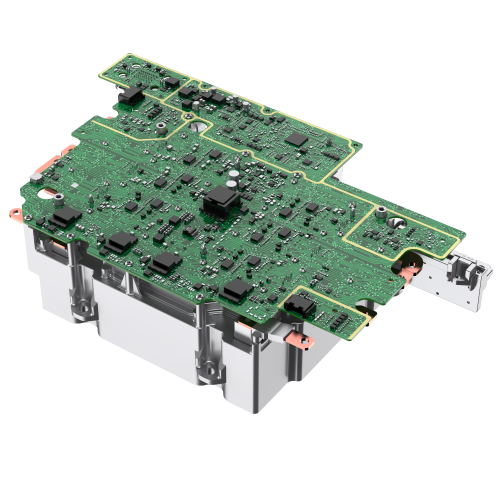

Co-board and co-chip design, reduced size, lighter weight, improved energy efficiency

The power module integrates high efficiency, miniaturization, strong temperature resistance, and intelligent control, effectively enhancing endurance

Passed full-chain verifications (torque impact, electromagnetic interference resistance, high-speed durability, loaded temperature cycle durability, high-temperature durability, etc.), obtained the CARI 'High Reliability Electric Drive' certification.

Products > E-Drive Units > L300 Series

L300 Series

Compact design, High efficiency, High reliability

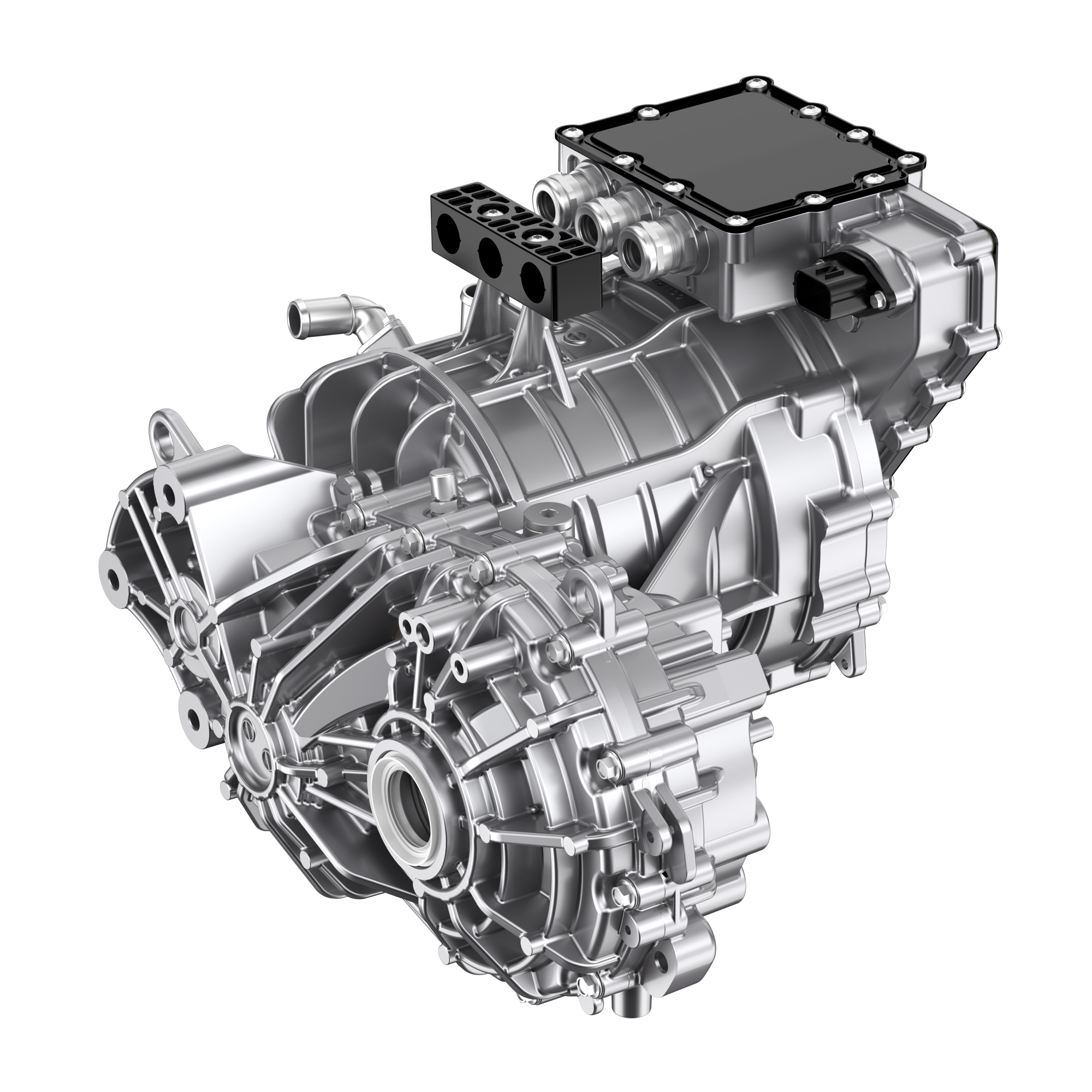

EDU L300
China's first 3-in-1 EDU with half-shaft disconnect mechanism

Peak power:156kW

Peak torque:2950Nm

Max. speed:16000rpm

CLTC efficiency:90.1%

Disconnect mechanism:modular optional

X*Y*Z:330mm*521mm*324mm

Parallel-axis coaxial structure design for lightweighting

Optional modular half-shaft disconnect mechanism

Motor stator equipped with a 360° high-efficiency oil cooling system

Products > E-Drive Units > L400 Series

L400 Series

Modular architecture, High integration, Customization for global standards

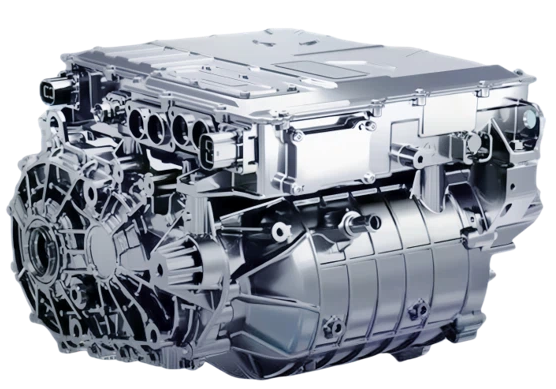

EDU L401
11 in 1 ultra-high integrated domain control system, 400V IGBT EDU overall efficiency exceeded 90% for the first time

Peak Power:160kW

Peak Torque:3200Nm

Max. Speed:16500rpm

CLTC effiency:90.04%

Integration level:11 in 1

Weight:79.8kg

X*Y*Z:495mm*507mm*394mm

Integrated EVCC and OBC (up to 11 kW), fully compliant with global charging standards

OBC and DC/DC modules in integrated electronic control can be maintained independently, reducing the maintenance cost

Awarded China Automotive Technology & Research Center’s first-ever “Electric Drive System 5A Certification”

Products > E-Drive Units > TL300 Series

TL300 Series

Dual motor configuration, integrated dual-motor and dual-control design

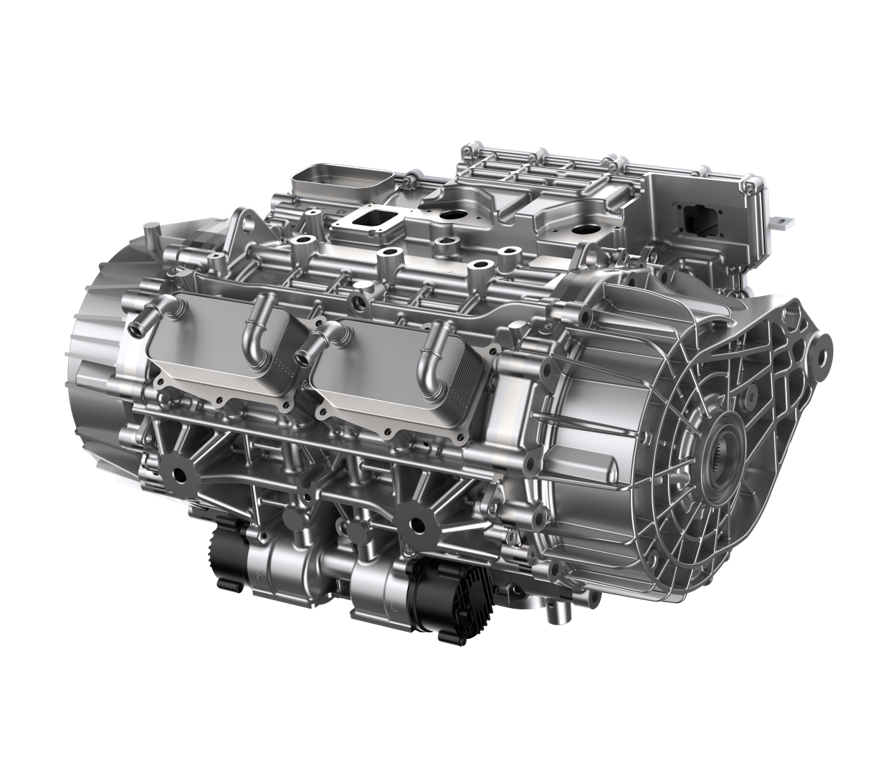

EDU TL300
Dual-motor distributed drive system with torque vector control, enabling smooth and precise "waltz" turning

Peak power:170*2kW

Peak torque:3400*2Nm

Max. speed:18000rpm

WLTC efficiency:≥89.5%

Power density:3.1kW/kg

X*Y*Z:470mm*582mm*352mm

World’s first dual-motor assembly with magnesium-aluminum alloy housing, lightweight design

2-in-1 intelligent integrated controller, co-chip design

ASIL D global highest-level functional safety design

Scalable to 800V platform

Products > E-Drive Units > Commercial Vehicle L300 Series

Commercial Vehicle L300 Series

High Performance，High Efficiency，High Reliability

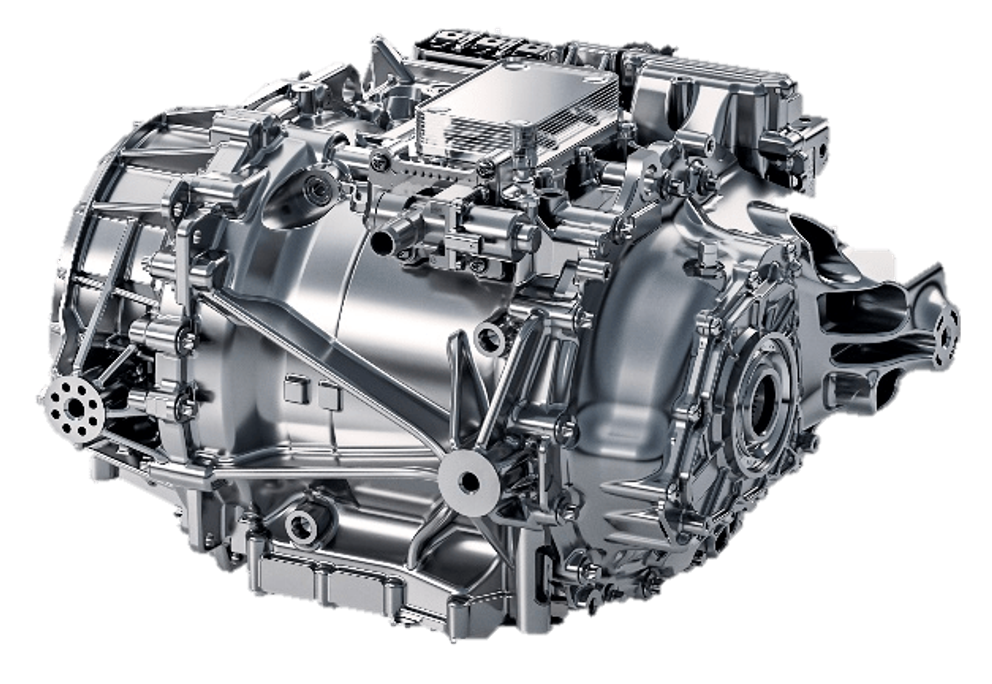

EDS L306
Suitable for commercial vehicle such as VAN, micro trucks, and small trucks

Peak power:90kW

Peak torque:2562Nm

Max. speed:12500rpm

Weight:52kg

Water cooled flat wire motor and reducer are arranged in parallel, with high space utilization rate

Peak power of 90kW, maximum torque at the wheel end of 2562Nm, ensuring maximum vehicle performance

Fluid simulation low loss curve lubricating oil circuit, low oil mixing loss, and comprehensive efficiency of the two in one assembly of 97.07%
