Modular platform architecture, enabling broad compatibility across off-road range-extender applications.
Engine compliant with EPA/CARB Tier 4 and EU Stage V emission standards.
Integrated thermal management system and high-efficiency permanent magnet synchronous generator (PMSG, maybe PMSM), supporting real-time dynamic power tracking for optimized performance and energy efficiency.

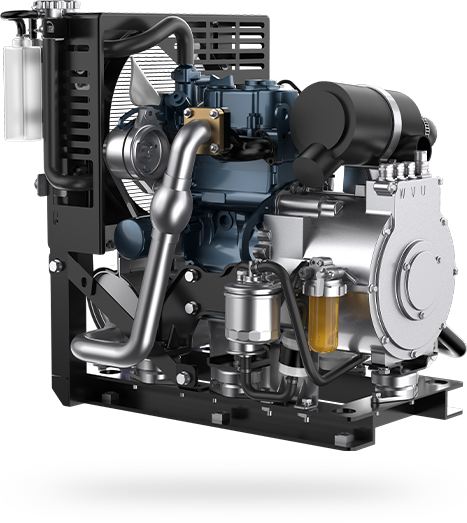

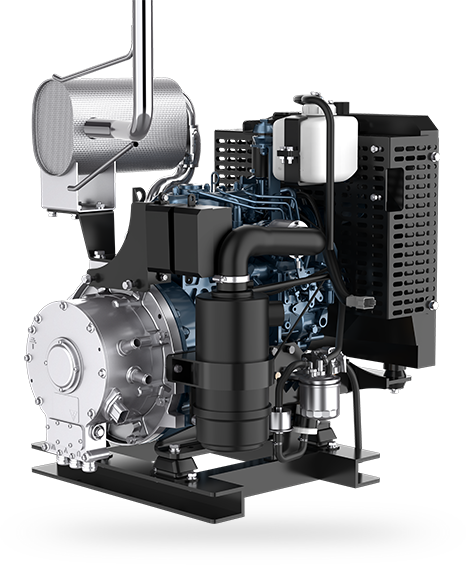

Platform-based range extender for construction machinery and agricultural plant protection robots.
GX-GC05
Highly integrated power, generation, and auxiliary system design, featuring a unique power generation control system compatible with both mains electricity and motor input.
Rated Power: 5kW
Rated Voltage: 380V
Fuel Consumption at Rated Power: 2.0L/h
Total Weight: 108kg
GX-GC06
Highly integrated system design with high-efficiency power generation and control unit. Precision torque control with dynamic power-following capability. Compliant with SAE J1939 CAN protocol and equipped with multiple fault protection mechanisms.
Rated Power: 6kW
Rated Voltage: 80V
Fuel Consumption at Rated Power: 2.6L/h
Total Weight: 108kg
GX-GC17
High-efficiency power generation and control unit, supporting wide-range high-voltage input. Precision torque control with dynamic power-following capability. Compliant with SAE J1939 CAN protocol and equipped with multiple fault protection mechanisms.
