Urban Air Mobility - Value-added Service

End-to-End Solutions

A highly integrated, reliable, and lightweight hybrid system delivers tailored solutions for diverse operational scenarios. Focusing on applications such as crop protection, aerial lifting, and firefighting, the oil-electric hybrid drones can operate immediately after refueling, providing long-endurance performance across multiple environments. Full-chain operator services—covering solution planning, equipment selection, deployment, platform management, and maintenance—enhance operational efficiency and accelerate large-scale adoption of drone technology across multiple sectors

Agriculture and Forestry Crop Protection: Leveraging the long-endurance capability of oil-electric hybrid drones, continuous large-area crop protection operations can be performed without frequent recharging. Customized precision spraying plans significantly improve operational efficiency and reduce labor costs, while adapting to diverse terrains and crop types.

Photovoltaic Snow-Clearing: Fuel-powered drones operate reliably in extreme cold. Large photovoltaic arrays can be cleared efficiently in a single sortie. Tailored, damage-free snow-clearing solutions, combined with low-temperature maintenance support, help restore power generation quickly and minimize snow-related losses.

Logistics and Transportation: Fuel-powered drones enable long-endurance, long-distance flights, making them well-suited for remote and complex environments. Refueling allows rapid turnaround, effectively overcoming the limitations of electric drones in cross-region transport.

Patrol and Inspection: Equipped with fuel-electric hybrid technology, drones can conduct continuous, all-weather reconnaissance over extended periods, reducing interruptions for recharging. This allows easy operation in complex weather conditions and challenging terrain.

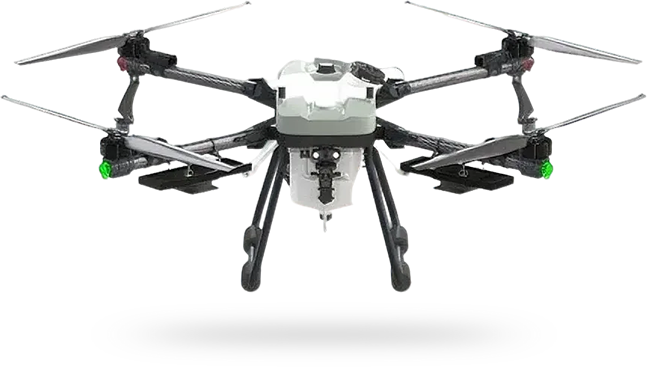

X-PC1W
Fuel-Electric Hybrid Crop Protection Drone, Ultra-Long Endurance
Supports 20L spraying or 30L spreading operations for crop protection.
Centimeter-level positioning accuracy, enabling precise point-spraying.
The oil-electric hybrid powertrain offers excellent endurance, alleviating range anxiety.
Immediate operation is possible after refueling without carrying chargers or batteries.

Wheelbase: 1950mm

Folded Dimensions: 850mm* 800mm* 870mm

Maximum Takeoff Weight: 64kg

Rated Payload: 20kg

Operational Endurance: 30min

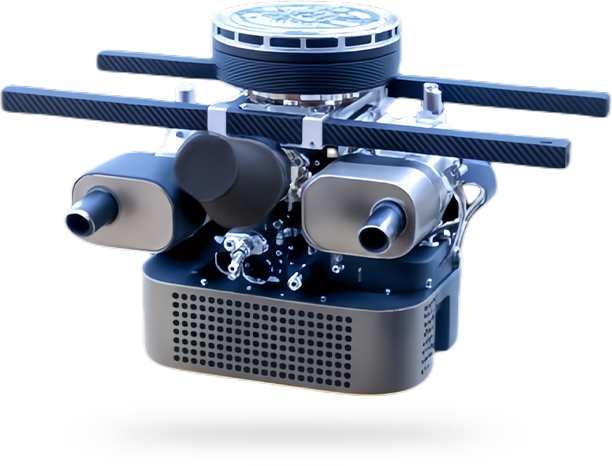

GX-16 Range Extender
Compatible with Logistics and Crop Protection Drones
342 CC water-cooled two-stroke engine; tested for 300 hours of continuous full-power operation.
Integrated engine and aircraft control unit provides multiple safety protections.
Supports CAN2.0 and UAVCAN communication protocols.

Output Power: 16kW

Output Voltage: 58V(14S) / 74V(18S)

Fuel Consumption at Rated Power: 13L/h

Total Weight: 22kg

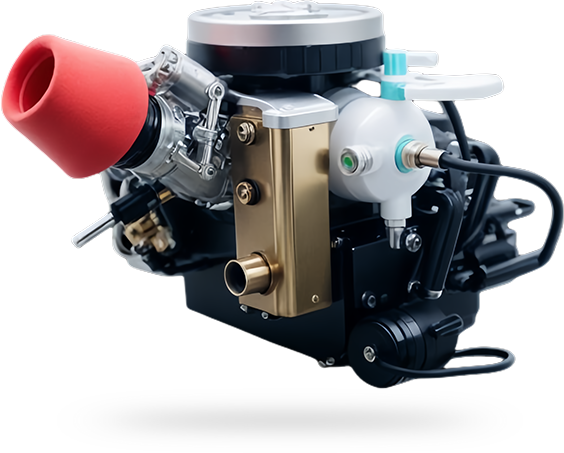

GX-7 Range Extender
Compatible with Crop Protection and Emergency Drones
124 CC water-cooled two-stroke engine with densely-packed needle-roller bearing technology; tested for 300 hours of continuous full-power operation.
Supports multiple safety protections and health monitoring.

Output Power: 6.5kW

Output Voltage: 58V(14S)

Fuel Consumption at Rated Power: 6.0L/h

Total Weight: 8.8kg

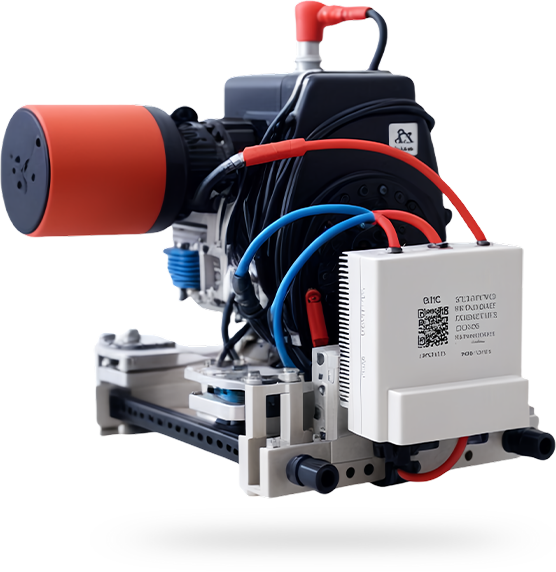

GX-2 Range Extender
Compatible with Patrol and Inspection Drones
Aviation kerosene-powered design with a lightweight structure and a high-efficiency FOC rectifier-inverter power generation system, supporting one-button start and stop.
Motor speed up to 14,000 rpm; lightweight system architecture enhances overall efficiency and performance.

Output Power: 1.8kW

Output Voltage: 48V(12S)

Fuel Consumption at Rated Power: 1.5L/h

Total Weight: 4.5kg

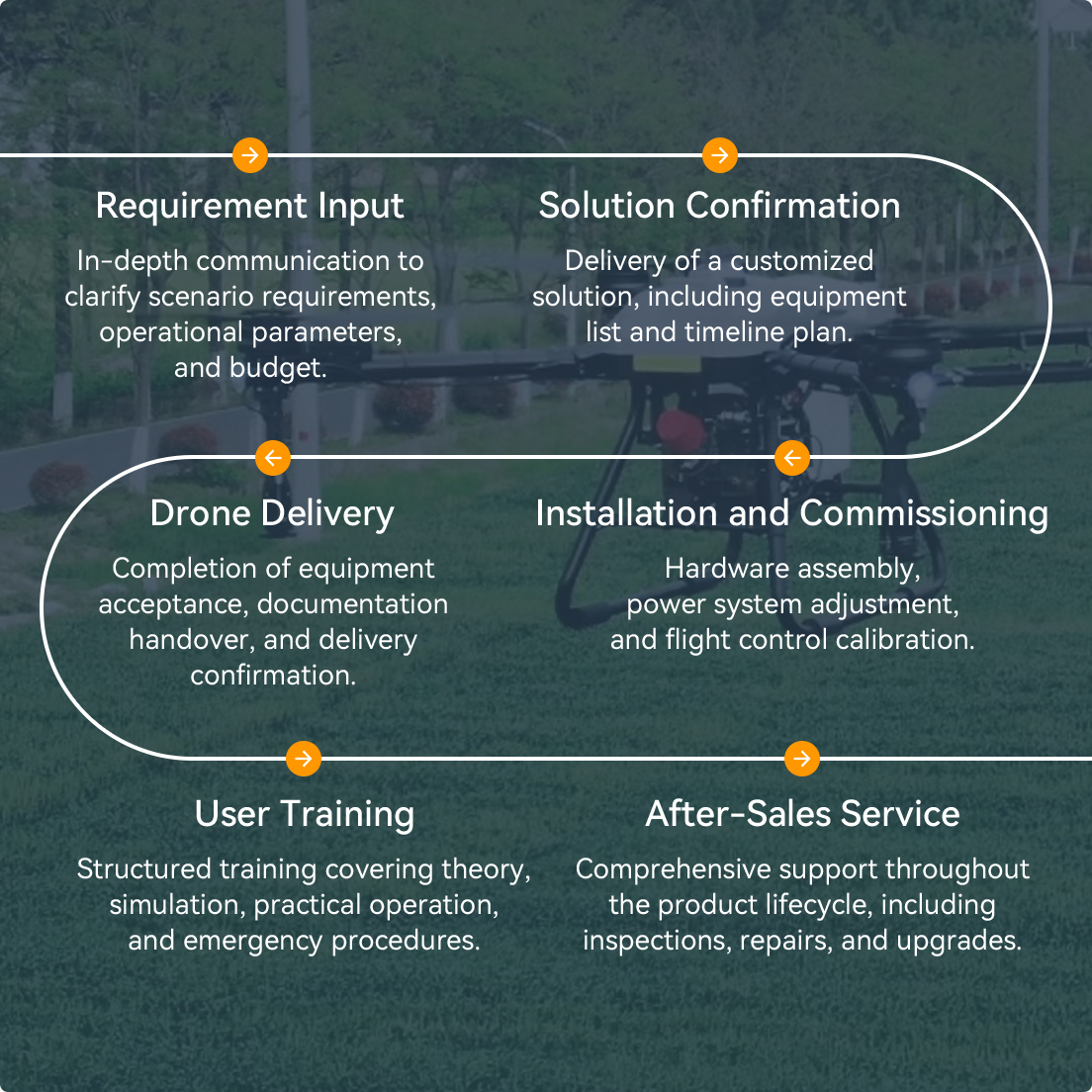

Services & Support

End-to-End Solutions

End-to-End support is provided, including operational scenario assessment, professional power system matching, and precise payload–endurance analysis. Tailored oil-electric hybrid flight solutions are delivered together with technical training and routine operation and maintenance support.

Quality Management

Key modules of drone aviation range extenders are covered by a 300-hour flight warranty, including core components such as engines, generators, and control systems.

After-Sales Assurance

During the warranty period, if a component fails due to a quality issue of the product itself, we provide free repair and replacement services to ensure the normal operation of the equipment.
